THESE ARE AVAILABLE IN SMOKE AND CLEAR
This is some info we got from WinJet today -
Also I want to make sure that everyone knows this is not a HID light

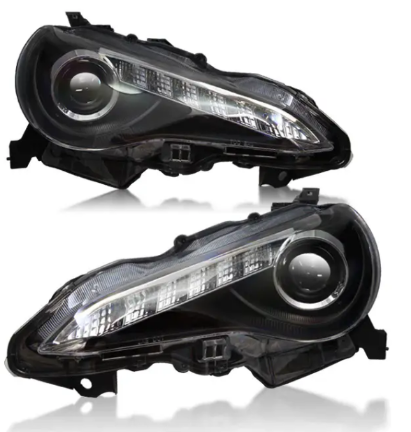

These new FRS Winjet headlights are JDM Styled, and were specifically designed for the Scion FR-S/10 Series FR-S. They feature an awesome LED DRL strip that’s built in and is always enabled when the vehicle is powered on. Read the bullet points below to obtain some more information about these slick new headlights.
- These are plug and play, just like OEM. We’ve meticulously tested the electrical system and manufactured these FRS Winjet Headlights to be extremely user friendly.
- The DRL will go on once the vehicle is on and the e-brake is released; it will stay on for the entire duration.
- Because of the design of the projectors, thes FRS Winjet Headlights use H7 light bulbs which offers a better light output compared to all other aftermarket projectors which use H1. These are specially fitted for an H7, no other bulbs can be used, but an HID upgrade is certainly doable.
- FRS Winjet Headlights are made in our own factory in China. We’ve been in the lighting business for over 10 years and have accumulated plenty of experience. All our products are covered by a limited warranty against manufacture defect for 6 months so you don’t have to worry about LEDs going out or water leaks. (FYI – we have a lower manufacture defective rate than T*C, which is “OEM Standards”
The Morimoto UPGRADE + $150.00
The Morimoto upgade consist of-
You will not need the relay harness with this install Please let us know in the notes section what Kelvin Color
These are two options 5500k & 6500K
All OEM HID kits are 4300K. We recomment the 5500K it is considered the pure white
4300K - Yellowing Tinge
5000k - Pure White
6000k - Blueish Tinge
This bulb is of higher quality and hand made with capsule's also made in Germany.
Video - HERE - http://www.youtube.com/watch?v=fwuUba0m9WM&feature=youtu.be
Orders placed outside of the continental 48 US States will be subject to a higher shipping charge than what is displayed; you will be contacted if this charge applies before we ship out your order.
Included in the package: Warranty: 6 Month
2013-16 FR-S with non-HID headlights, (base-model)
Does not Fit Monogram, 10 Series, 1.0, 2.0 Models
Email for Fitment
DRL MOD V2
This is the DRL mode to keep the Winjet DRL bar on during low beam operation
This is a Different Version from the origional DRL mod FT86 offered over a year ago when the winjets headlights were released - This one does not iclude the pin
The function and quality of this DRL mod is the same as the previous version - This is a lot less expensive and a bit easier for you to install.
This allows the DRL strip to operate normal, It also turns the DRL strip on with the parking lights and stays on with the low beam and high beam function
The DRL strip will operate normal. It will also power on with the parking lights and stay on with the low beam and high beam. it requires cutting one wire after the highbeam connector, and crimping the the piece in on each side heat shrinking the crimp (i used heat shrink butt connectors) then running the wire through a grommet and into the connector. Repin the drl wires as its backwards color wise from winjet.. Really easy, i have a video on a how to coming very shortly. I solder these in here at the shop, but as many people dont have use to solder equipment then this is the best/easiest way i could come up with. it takes about an hour for me to get a set done. I dont use any cheap china sourced components, all made here in the usa quality stuff, which cost more and why the price is as much as it is.
Watch this for proper wiring on a Winjet
