NOTE: Cannot be used together with the HKS GT2 SUPERCHARGER

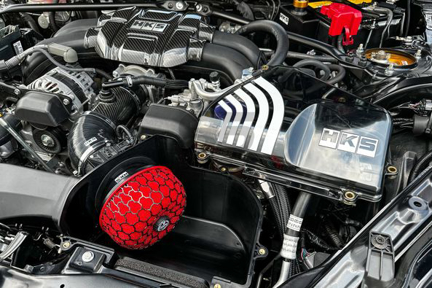

●Cold Air Intake Box
To improved intake efficiency, the air cleaner features the traditional high performance “Super Power Flow (D150-80, wet
type, 2 layers)”
By containing the Super Power Flow inside in the box, this helps reduce the effect of hot air in the engine compartment
and stabilizes intake air temperature at a lower level.
The air flow meter is in the same position as stock to comply with the factory control. An additional second intake duct
has been added to reduce airflow resistance during intake.
The upper case of the box is clear smoke colored that complements the engine compartment, while nonchalantly
showing off the Super Power Flow.
●Carbon Suction Pipe
*3K: 3,000 Carbon Fibers
*Prepreg: Heat cured resin containing fibers in advance
* UD: Single-direction carbon fiber. UD achieves high strength
by laminating multiple sheets in different stacking orientations.
High temperature resistant silicone hose are used for connection to the intake box. The smooth internal surface reduces
intake resistance, while the internal core wire suppress deformation and improves reliability.
Using the hot press method, the surface is made of 3K*
twill weave carbon prepreg* while using UD* prepreg on
The curing process is performance by using a silicon bag
on the inside of the pipe at high pressure and high
temperature. As a result, high strength is achieved in
addition to a smooth inner surface. Air flows smoothly
while retaining sufficient strength.
●Air Intake Duct
A one-piece molded construction without internal seams was adopted, to reduce intake resistance.
Aiming to reduce resistance at maximum flow rate, the narrowest section diameter is D87.5mm, while the factory
diameter is D50mm.
Due to the same layout as the factory unit, it does not absorb rainwater and can be used safely on the street.
- cold air intake box
- ait intake duct
- carbon fiber suction pipe
- carbon fiber intake piping
- enlarged air inlet
- enclosed intake box
- red or green suction filter
- integrated sound tube
- ideal for increased horsepower, torque, and style
