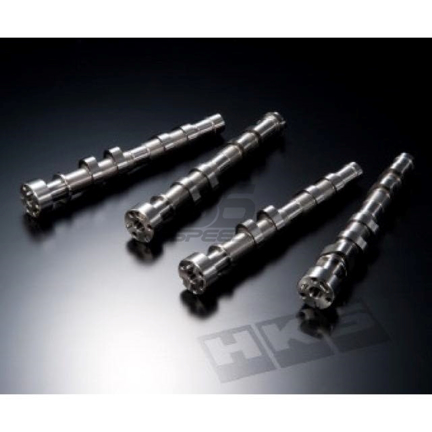

HKS Camshaft FA20 Intake 260/Exhaust 266 SET- 2013-2020 BRZ/FR-S/86

Name: HKS Camshaft FA20 Intake 260/Exhaust 266 SET- 2013-2020 BRZ/FR-S/86
Brand: HKS
SKU: hks22002-AT006
Availability: InStock

SKU: hks22002-AT006

Manufacturer: HKS

Fits 2013 to 2020 Subaru BRZ, Scion FR-S, and Toyota 86.

DEAL ENDS

Be the first to review this product

MSRP: $1,980.00

Price: $1,665.00

Qty:

i h

*Fast Shipping *Buy Now and Pay Later

*Authorized Dealer *Safe Purchases

*Outstanding Customer Service A+++

Overview
Reviews
Contact Us

Camshaft Kit developed by taking advantage of knowledge and experience acquired through D1 drift and time attack at Tsukuba Circuit.
Both NA and turbo-charged engine users can use this camshaft set.
Overwhelming power increase can be felt in the high rpm range.
Using the capacity upgrade kit together is recommended to achieve optimum performance and keep proper valve clearance.

FEATURES

High acceleration and pick-up camshafts were completed by meticulous analysis of the stock rocker structure.
Cam lobe for the direct injection pump is available so the camshaft can be used the same way as the stock.
The valve timing is the knock pin is matched to stock cam, so, there is no need for complicated installation.
Since the stock valve piston clearance is narrow, this camshaft kit was developed to be used with the capacity upgrade kit, and the piston recess was redesigned to enable a 0.7mm lift increase without replacing the springs.

SPECIFICATIONS

	STOCK		HKS
	INTAKE	EXHAUST	INTAKE	EXHAUST
Cam Duration ( °)	255	252	260	266
Valve Lift (mm)	11.00	11.00	11.70	11.70
Clearance (mm)	0.13±0.03	0.24±0.03	0.13±0.03	0.24±0.03
Valve Timing Most Advanced Angle ( °)	82	81	82	81
Valve Timing Most Retarded Angle ( °)	150	135	150	135
VVT Variable Angle ( °)	68	54	68	54
Spring Replacement	－	－	×	×
Cam Type	Roller Rocker	Roller Rocker	Roller Rocker	Roller Rocker
High Press. Pump Cam Lobe	〇	－	〇
